Form Factor

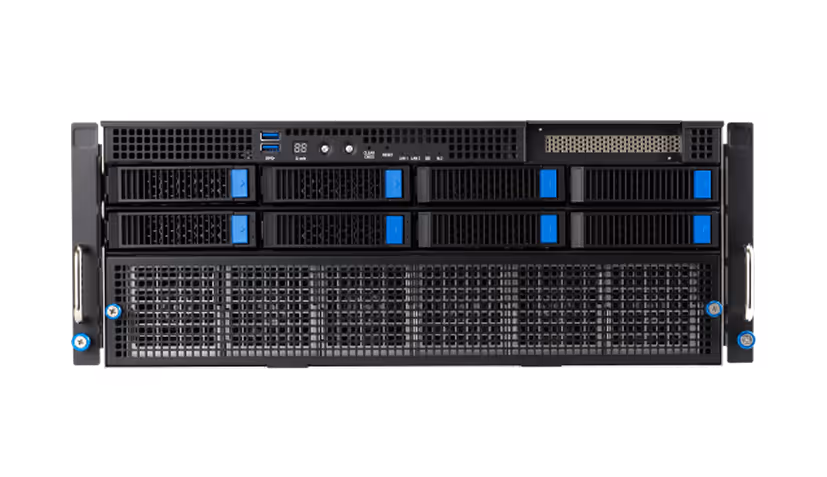

4U rack-mount server
CPU
Dual Intel Xeon 6 Scalable processors (up to 144 cores each)
Memory
Up to 8TB DDR5-5600 (32x DIMM slots)
Expansion PCIe
8x PCIe 5.0 x16 slots (for NVIDIA GPUs or Intel Gaudi 3 AI accelerators), 2x PCIe 5.0 x8 slots
HD
Up to 24x 2.5”/3.5” NVMe/SATA/SAS hot-swap bays
Network Interfaces
- Supports NVIDIA ConnectX-7 NICs (200GbE/400GbE) or Quantum-2 InfiniBand
- 2x 10GbE LAN ports for AI cluster connectivity
Performance Features
- Engineered for AI fine-tuning, training, and HPC workloads
- Supports Intel Gaudi 3 AI accelerator PCIe cards and NVIDIA RTX PRO 6000 Blackwell GPUs for AI processing
- Features DC-MHS architecture for scalability and cost-efficient maintenance
- Showcased at CloudFest 2025 for generative AI and large-scale data processing
Management
- ASUS Control Center (ACC) for server management
- Integrates with NVIDIA AI Enterprise and Intel AI software platforms
Power Supply
- Redundant, hot-swappable 2200W power supplies
- Liquid-cooling capable for high-density AI deployments
