Form Factor

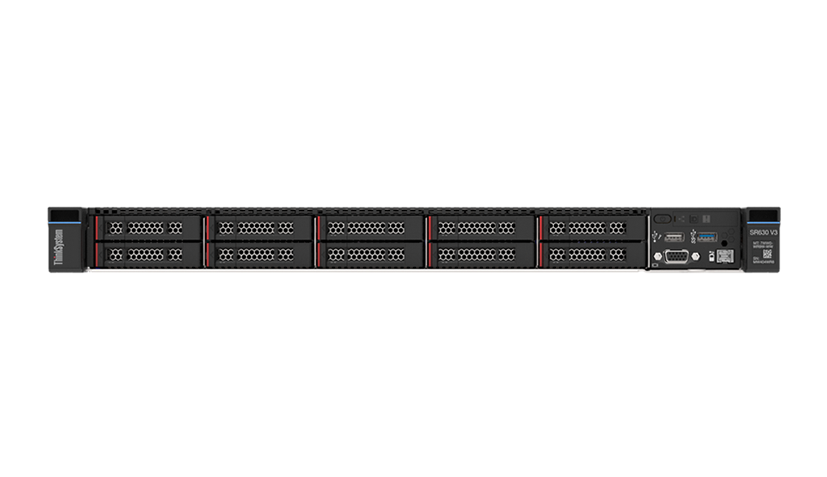

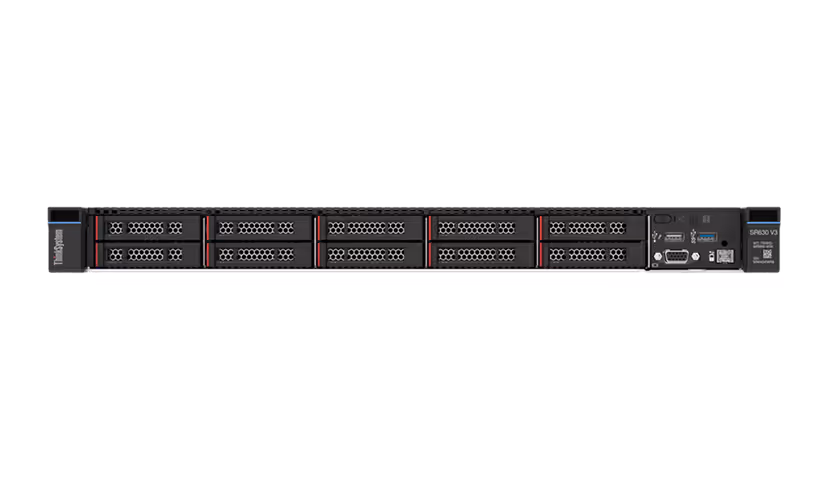

1U rack-mount server
CPU
Dual 5th Gen Intel Xeon Scalable processors (up to 144 cores each)
Memory
Up to 4TB DDR5-5600 (16x DIMM slots)
Expansion PCIe
Up to 3x PCIe 5.0 x16 slots (for NVIDIA A100, L40S, or Intel Gaudi 3 accelerators)
HD
Up to 10x 2.5” NVMe/SATA/SAS hot-swap bays, plus 2x M.2 SSDs
Network Interfaces
- Supports NVIDIA ConnectX-7 NICs (200GbE)
- 2x 10GbE LAN ports for AI networking
Performance Features
- Designed for AI inference, small-scale LLMs, and edge AI workloads
- Supports NVIDIA GPUs or Intel Gaudi 3 for AI analytics
- Compact 1U design for space-constrained AI data centers
- Air-cooled with optional Lenovo Neptune® liquid-cooling
Management
- Lenovo XClarity One for secure, scalable management
- Integrates with NVIDIA AI Enterprise and Intel AI frameworks
Power Supply
- Redundant, hot-swappable 1100W/1800W power supplies
- Air- or liquid-cooling options
