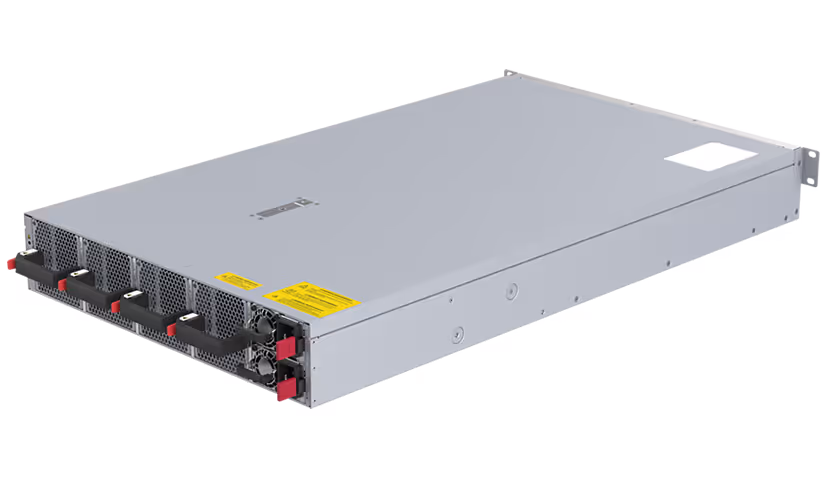

Micas Networks M2-W6940-64OC

This high-density 800G Ethernet switch is designed to meet the demands of AI/ML workloads, offering ultra-high performance, low latency, and scalability for large-scale data centers. It supports GPU clusters (up to 100,000 GPUs) with features like RoCEv2 and 102.4 Tbps bandwidth, making it ideal for real-time AI processing and large language model (LLM) applications. The switch leverages Broadcom’s Tomahawk 5 ASIC and SONiC OS for flexibility and cost-efficiency, positioning it as a key solution for AI-driven data centers.

get a quote

No items found.

Technical Specifications

Form Factor

2U rack-mount Ethernet switch

Processor

Broadcom Tomahawk 5 ASIC (no GPU included)Network Interfaces64x 800GbE OSFP portsPerformance Features

102.4 Tbps full duplex bandwidth
Supports single-pass VxLAN routing and bridging for AI/ML workload virtualization
RoCEv2 (RDMA over Converged Ethernet) for lossless Ethernet, ensuring zero packet loss during RDMA communication
Low latency and high reliability for AI/ML and high-performance computing (HPC) applications

Management

Powered by SONiC (Software for Open Networking in the Cloud) network operating system
Advanced management features for large-scale data center networks

Power Supply

Over 94% efficient power supplies
1+1 redundant and hot-swappable power supplies

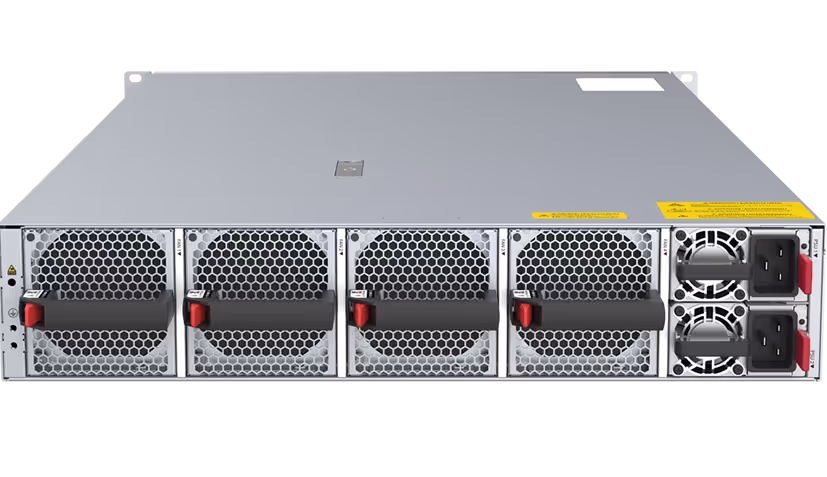

3+1 redundant and hot-swappable fans
Front-to-rear cooling

Target Market

Hyperscalers, cloud data centers, and OEMs for AI/ML and HPC applications
